Name:HY6ZK10-160 Automatic

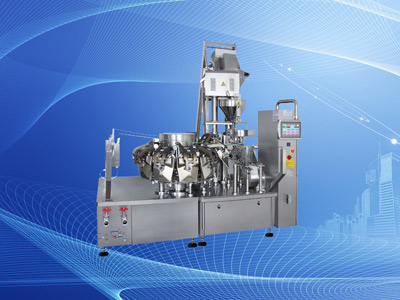

HY6ZK10-160 Automatic Vacuum Packaging Machine For Pickles

Product Introduction

The device is the new automatic vacuum packaging machine. It is widely used to package mustard, sauerkraut, pickled shredded bamboo shoots, mushroom, radish, seaweed, mushroom, konjac and other types of pickles and meats. This product is a fully automated production line by the process of measuring, filling, vacuum&sealing. Production process avoids direct contact with the staff and the material, saves a lot of labor, optimize the environment, eliminate the pollution, improve the production efficiency, significantly reduce costs, has won the praise of customers.

Work Process

Put the bag.  Open the bag.  Fill the material.  Add  liquid.   Binder.  Convert. Pump Vacuum.  Seal.  Output

Main Technical Parameters

Speed: 35-60 bags/min

Bag Type: stand-up bags, handbags, zipper bags, 4-side sealing bags, 3-side sealing bags, paper bags, compound bags, etc .

Bag SizeW: 70-140 mm   L: 80-210 mm

Filling Range10-300 g

Air Displacement>=0.3 m3/min

Power4 kw (not include vacuum)

Overall Dimension220017002300 mmincluding conveyor and elevator

Drive Power : 3 phase 5 wire system 380v 50hz

Machine Weight2400 kg
