Name:HY-330 Full Automatic High Speed Food Paper Bag Making Machine

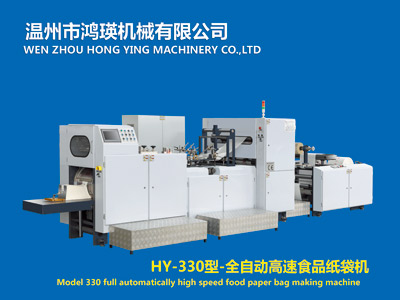

HY-330 Full Automatic High Speed Food Paper Bag Making Machine

Main Characteristics

1.The machinable materials include domestic and imported kraft paper, glossy paper, white cardboard, the available thickness from 30 gsm to 100 gsm;

2.Adopts inflatable shaft for feeding, and use magnetic powder brake tension control system to control the paper's tension;

3.Feeding unit is merged with film pasting unit and four color printing system. Printing range is controlled by independent servo motors, also adopts enclosed drying device;

4.Automatic punching, seam gluing, snapping and forming, folding V shape bottom and automatic counting are controlled by host servo motors;

5.High precision of synchronous drive system, which cut accurately with high speed, depends on printing distance within 1mm;

6.Adopts color screen man-machine interface operation and simplifies the operation steps.

Technical Parameters

Model                      HY-330

The Paper Gram                  30-100 gsm

Max. Diameter of Roll Paper     1200 mm

Max. Width of Roll Paper         900 mm

Width of Finished Bag            80-350 mm

Cutting Length                    110-450 mm/ 200-780 mm

Length of Finished Bag           175-760 mm

Standard Flap                  12-60 mm

Max. Speed                        600 pcs/min 150 m/min

Host Servo Motor                 5.5 kw

Traction Servo Motor           3.5 kw

Hole Servo Motor          3.5 kw

Snap Servo Motor               3.5 kw

Total Power                     16 kw

Total Weight                    5500 kg
