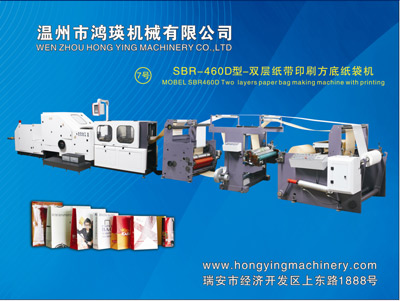

Name: SBR-460D Two layers paper bag making machine with printing


Structural Features

 1. The double layer tape printing square bottom bag making machine consists of feeding equipment, printing equipment, molding device, receiving device (and some auxiliary equipment).

2. The touch screen of man-machine interface, easy to modify and fine-tuning. Alarm and working status can be displayed on the screen, easy to operate and maintain.

3. Equipped with PLC centralized control system of Kunlun Tongtai company, German SICK photoelectric correction, tracking printed material accurately so as to reduce adjustment and preset time as much as possible and improve the production efficiency.

4. People-oriented safety protection of the whole housing design, ensures the safety of the operators.

5. Hydraulic air swelling shaft loading system, with chuck, hydraulic system of up/down

6. Constant tension control of automatic unwinding, feeding system of EPC network guider and inverter, motors to minimize the adjustment time of network alignment

7. High-speed design to ensure success: production of the appropriate paper range, output of 30-150 pcs/min, even higher. It increases the unit production capacity and higher profits.

8. Original German Schneider electric system to ensure better stability and reliability. Provide the perfect after-sale service for customers.



Technical Parameters

Model                                                       SBR-460D

Width of Paper Roll                                          600-1300 mm

Cutting Length                                               270-520 mm

Width of Paper Bag                                         220-450 mm

Length of Paper Bag                                        225-470 mm

Width of Bag Bottom                                        60-180 mm

Paper Weight                                                  60-200 gsm

Max. Diameter of Paper Roll                               1500 mm

Internal Diameter of Roll Core                             76 mm

Max. Speed                                                    150 pcs/min

Power                                                          15 kw

Weight                                                         9000 kg

Overall Dimension                                      9600 mm*2500 mm*1800 mm
