Structural Features

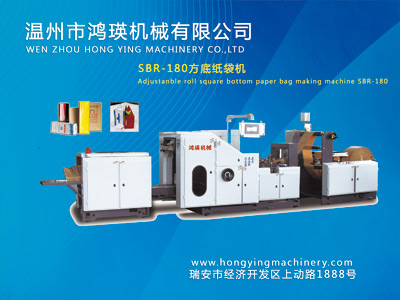

The newest development of square bottom paper bag making machine adopts the advanced technology from domestic and abroad. This machine with many advantages, such like high speed, high production efficiency and big adjusting range. The whole process is finished by PLC man-machine interface, automatic feeding, photoelectric correction, tension control. It’s the ideal equipment for producing food paper bag and all kinds of non-staple food paper bags in domestic and abroad.

Main Characteristics

1.Adopts servo motors and the color code tracker to track the printed material precisely.

2.Motion controller with the integration of the fiber to realize the high precision motion control and process test.

3.Adopts touch screen interface, with a good man-machine interface and clear operating functions.

4.Uses the cold spray adhesive system, the dosage of glue can be adjusted automatically according to the running speed.

5.The machine is equipped with a paper jam detector, it will alarm automatically to protect the machine when paper jammed.

Model                   HY-180

Paper Bag Width                               78-190 mm

Bag Bottom Size                               50-100 mm

Bag Tube Length                               190-370 mm

Max. Roll Paper Width                          600 mm

Machine Speed                                200 pcs/min

Paper Thickness                                45-120 gsm

Diameter of Material                           1400 mm

Main Motor                                     10 kva

Air Pressure                                     690 kpg

Machine Weight                                 3500 kg

Machine Size(W*L*H)                         1600*9200*1750 mm
