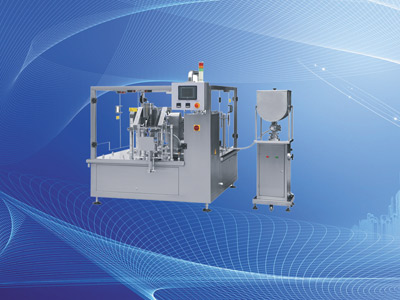

HY6/8-200Y Automatic Weighing Packaging Machine For liquid(paste)

Application:

This set of equipment with prefabricated bag packing machine and automatic liquid(paste) measuring machine, is suitable for the self-supporting bag, hand bag, zipper bag, four sides sealing bag. three sides sealing bag, paper bag, M bag, compound bag, bag of fruit juice, tomato sauce, chilli sauce, peanut butter, soap, detergent, paste material by automatic metering and packing.

Main Technical Parameters

Speed：22-55 bags/min

Bag Size：W:70-200 mm  L:100-300 mm

Filling Range：20-300 g

Air Displacement：>=0.4 m3/min

Accuracy：<=+-1 g

Host Power： 3-phase AC380c

Control Supply：DC24V

Power：2.5 kw

Overall Dimension：1900×1770×1750 mm（including conveyor and elevator）

Machine Weight：1000 kg
