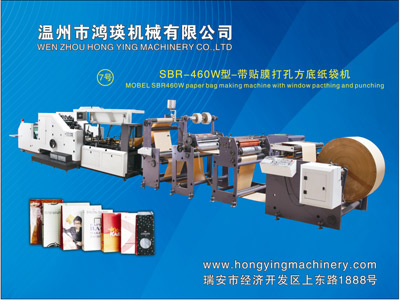

SBR-460W paper bag making machine with window pacthing and punching
Structural
Features
1.Square bottom
paper bag machine with pasting and punching consists of feeding device, the
pasting device, punching device, forming device, receiving device. That is
the original feeding device is separated into the gluing of window part section
and pasting the film section, plus a set of punching device.
2.
The touch screen of man-machine interface, easy to modify and fine-tuning. Alarm
and working status can be displayed on the screen, easy to operate and
maintain.
3.
Equipped with PLC centralized control system of Kunlun Tongtai company, German
SICK photoelectric correction, tracking printed material accurately so as to
reduce adjustment and preset time as much as possible and improve
the production efficiency.
4.
People-oriented safety protection of the whole housing design, ensures the
safety of the operators.
5.
Hydraulic air swelling shaft loading system, with chuck, hydraulic system of
up/down
6.
Constant tension control of automatic unwinding, feeding system of EPC network
guider and inverter, motors to minimize the adjustment time of network alignment
7.
High-speed design to ensure success: production of the appropriate paper range,
output of 30-150 pcs/min, even higher. It increases the unit production
capacity and higher profits.
8.
Original German Schneider electric system to ensure better stability and
reliability. Provide the perfect after-sale service for customers.
Technical
Parameters
Model
SBR-460W
Width
of Paper Roll
600-1300mm
Cutting Length
270-520mm
Width
of Paper Bag
220-450mm
Length
of Paper Bag
225-470mm
Width
of Bag Bottom
60-180mm
Paper
Weight
60-180mm
Max.
Diameter of Paper Roll
1500mm
Internal
Diameter of Roll Core 76mm
Max.
Speed
150pcs/min
Power
15kw
Weight
9000kg
Overall
Dimension
9600mm*2500mm*1800mm
|
