Structural
Features
1.

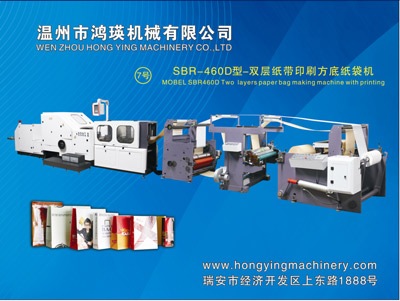

The double layer tape printing square bottom bag making machine consists of
feeding equipment, printing equipment, molding device, receiving device (and
some auxiliary equipment).
2.
The touch screen of man-machine interface, easy to modify and fine-tuning. Alarm
and working status can be displayed on the screen, easy to operate and
maintain.
3.
Equipped with PLC centralized control system of Kunlun Tongtai company, German
SICK photoelectric correction, tracking printed material accurately so as to
reduce adjustment and preset time as much as possible and improve
the production efficiency.
4.
People-oriented safety protection of the whole housing design, ensures the
safety of the operators.
5.
Hydraulic air swelling shaft loading system, with chuck, hydraulic system of
up/down
6.
Constant tension control of automatic unwinding, feeding system of EPC network
guider and inverter, motors to minimize the adjustment time of network alignment
7.
High-speed design to ensure success: production of the appropriate paper range,
output of 30-150 pcs/min, even higher. It increases the unit production
capacity and higher profits.
8.
Original German Schneider electric system to ensure better stability and reliability.
Provide the perfect after-sale service for customers.
Technical
Parameters
Model
SBR-460D
Width
of Paper Roll
600-1300 mm
Cutting
Length
270-520 mm
Width
of Paper Bag
220-450 mm
Length
of Paper Bag
225-470 mm
Width
of Bag Bottom
60-180 mm
Paper
Weight
60-200 gsm
Max.
Diameter of Paper Roll
1500 mm
Internal
Diameter of Roll Core
76 mm
Max.
Speed
150 pcs/min
Power
15 kw
Weight
9000 kg
Overall Dimension
9600 mm*2500 mm*1800 mm
|
